New Reference Material for Cast Iron Welding applications

[fa icon="calendar"] Jun 4, 2018 4:55:46 PM / by Dave Coler

Dave Coler

 One of the most common ways to weld cast iron is by stick or arc welding.   The stick is an electrode covered with flux or filler material. The most common filler material for welding cast iron are nickel alloys.  The chemical composition of the filler material can impact the quality of the weld so it is important to have reference materials to verify the composition.   Reliance Foundry provides a very good discussion of the procedures for welding cast iron in their blog post “How to Weld Cast Iron”.

iStock-959630322

There are few reference materials available for verifying the chemical composition of welding fillers so we decided create one in collaboration with Special Metals.   This new reference material called IARM-Ni244H-18  and  is based on  a is a nickel-iron-manganese alloy that is used as welding filler material and sold under the commercial name of NI-ROD® 44 Filler Metal.

The IARM Ni244H-18 has 22 major and minor elements certified as well as informational values for an additional 55 trace elements.   The unique major element composition of this alloy (41.1% Ni, 39.9% Fe, 10.9% Mn and 6.9% Cr) make it extremely useful as a sample to extend the calibration ranges for XRF and OE applications as well as a calibration monitor sample.

This reference material is available as  38mm x 3mm disks for XRF, 38mm x 19mm disks for OE or as chips for ICP-OES and ICP-MS applications.  The certificate of analysis for this reference material available for download on our new product page.

Request Quote

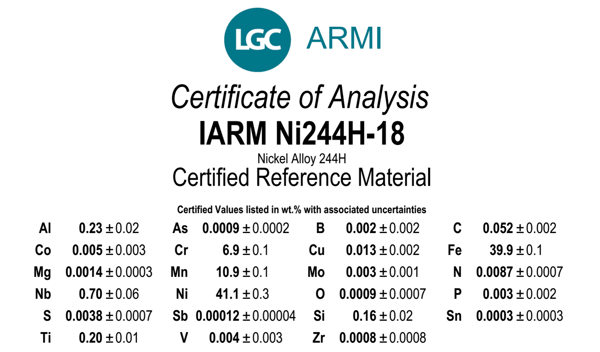

IARM 244 alloy CoA







Topics: nickel alloys, welding alloys, Cast Iron

Dave Coler

Written by Dave Coler

General Manager at LGC ARMI
