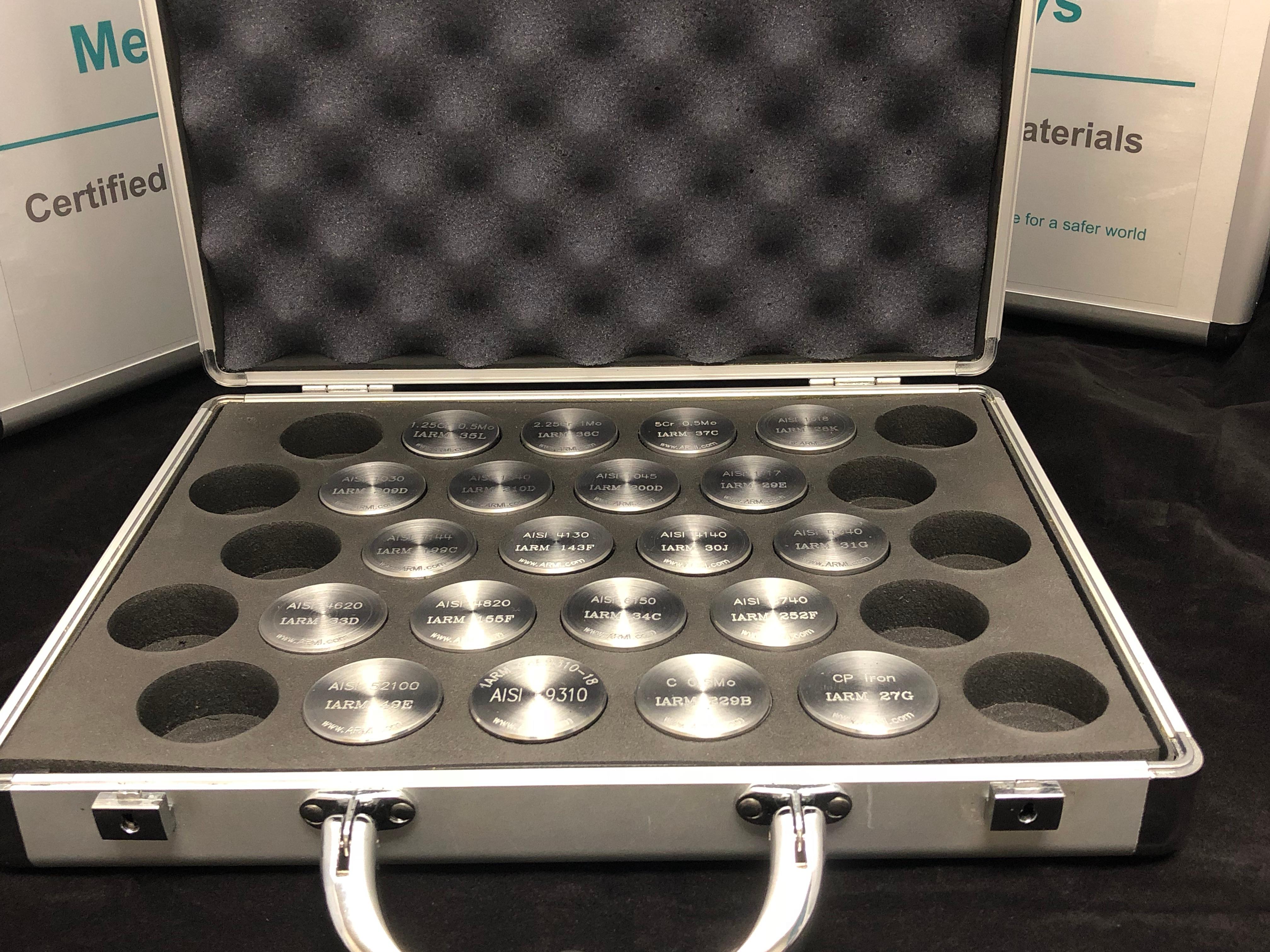

20 Piece Low Alloy/Carbon Steel Set
The low alloy /carbon steel set includes 20 of the most common Low alloy and carbon steel alloys and is ideal for calibrating your instrument, as type standards or for Positive Material Identification (PMI) grade matching. This set is available as thin discs for XRF, thick discs for optical emission or as chips for analysis by ICP. The specific alloy grades included in the set are shown below, but substitutions are possible.
This set can be combined with the other matrix specific alloy sets for form a comprehensive 100 piece master alloy set.
|
Alloy Grade |
UNS Number |
Alloy Grade |
UNS Number |
|
1¼Cr ½Mo |
K11572 |
AISI 4140 |
G41400 |
|
2¼Cr 1Mo |
K21590 |
AISI 4340 |
G43400 |
|
5Cr ½Mo |
K42544 |
AISI 4620 |
G46200 |
|
AISI 1018 |
G10180 |
AISI 4820 |
G48200 |
|
AISI 1030 |
G10300 |
AISI 6150 |
G61500 |
|
AISI 1040 |
G10400 |
AISI 8740 |
G87400 |
|
AISI 1045 |
G10450 |
AISI E52100 |
G52986 |
|
AISI 1117 |
G11170 |
AISI E9310 |
G93106 |
|
AISI 1144 |
G11440 |
C ½Mo |
K12822 |
|
AISI 4130 |
G41300 |
CP Iron |
K00095 |
Other available alloys sets include:
